MiniRobotLanguage (MRL)
Sample XML-Data
XML-Data that is used for the following Help Pages
Intention
We will use this Sample XML-Data for all the Commands on the following help pages.
Below you will find the sample-Data as well as a XML-Flags Dump.
This shows you how the Commands and queries work.

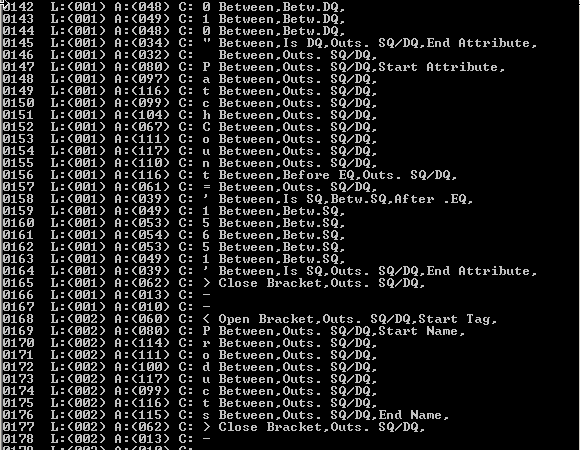

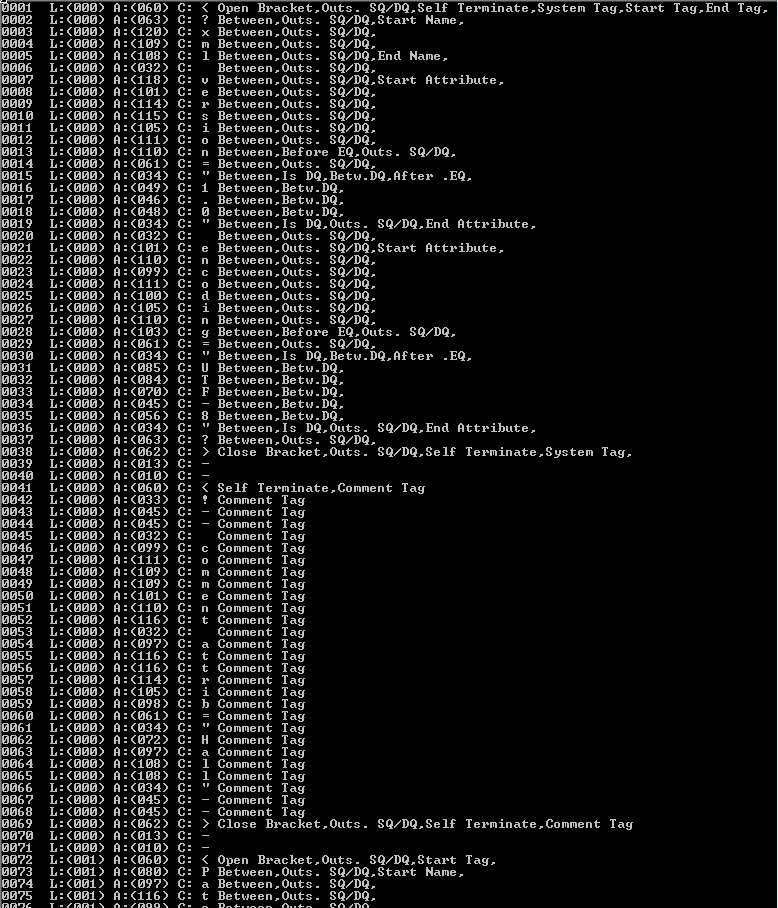

XML-Flags-Dump
This is an XML-Flags Dump of the used XML-Data. You can see the Flags that is set for any of the Bytes in the XML-Data.

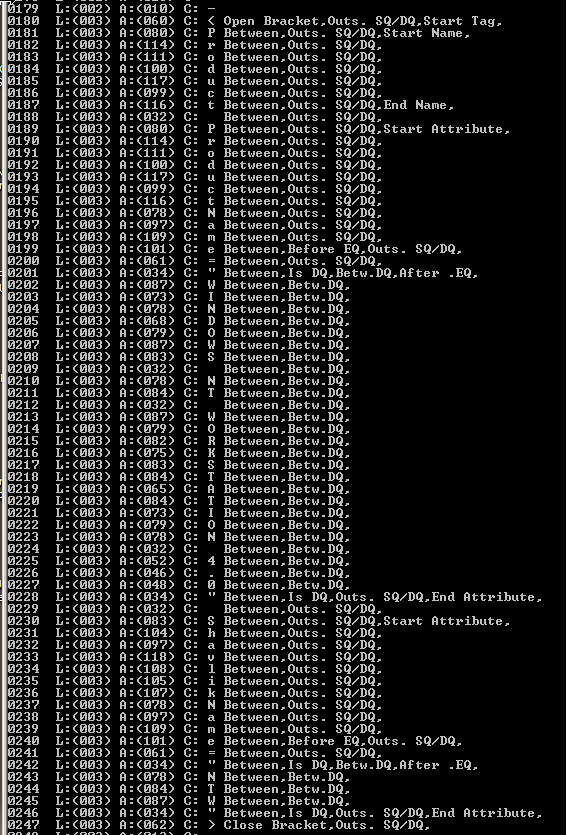

Here is another one:
In this above Dump you can see a part that is delimited by Single Quotes (SQ).
Below you can see the used XML-Data.
Example-XML-Data
'***********************************
' XML-Sample Data
' Used to demonstrate the XML-Features
' Mote that this XML-File has been changed
' for demonstration purposes
' and has no authentic technical information
' about Updates.
'***********************************
<?xml version="1.0" encoding="UTF-8"?>
<!-- comment attrib="Hall"-->
<PatchInformation XMLVersion="1.0000.0000.4918" XMLLastUpdated="1/30/2010" PatchCount='15651'>
<Products>
<Product ProductName="WINDOWS NT WORKSTATION 4.0" ShavlikName="NTW">
<SPS>
<SP SPName='SP3'/>
<SP SPName="SP4"/>
<SP SPName="SP5"/>
<SP SPName="SP6"/>
<SP SPName="SP6A"/>
</SPS>
</Product>
<Patch PatchName="SQLServer2008-KB2716433-x86.exe" SQNumber="Q2716433">
<DL SFN="SQLServer2008-KB2716433-x86.exe" FS="188008400">
<SURLS>
<SURL LGROUP="ENSTD" LURL="http://download.microsoft.com/download/9/2/7/927A4802-FC1C-4A71-9A2D-2DCEAC11B266/KB2716433/SQLServer2008-KB2716433-x86.exe"/>
<SURL LGROUP="FRSTD" LURL="http://download.microsoft.com/download/9/2/7/927A4802-FC1C-4A71-9A2D-2DCEAC11B266/KB2716433/SQLServer2008-KB2716433-x86.exe"/>
<SURL LGROUP="DESTD" LURL="http://download.microsoft.com/download/9/2/7/927A4802-FC1C-4A71-9A2D-2DCEAC11B266/KB2716433/SQLServer2008-KB2716433-x86.exe"/>
<SURL LGROUP="CHHKSTD" LURL="http://download.microsoft.com/download/9/2/7/927A4802-FC1C-4A71-9A2D-2DCEAC11B266/KB2716433/SQLServer2008-KB2716433-x86.exe"/>
</SURLS>
<AffectedProductSPs>
<AffectedProductSP ShavlikName="SQL2K8AS" SPName="SP2" BulletinID="MS12-070"/>
<AffectedProductSP ShavlikName="SQL2008" SPName="SP2" BulletinID="MS12-070"/>
<AffectedProductSP ShavlikName="SQL2008STD" SPName="SP2" BulletinID="MS12-070"/>
<AffectedProductSP ShavlikName="SQL2008EXPRESSAS" SPName="SP2" BulletinID="MS12-070"/>
</AffectedProductSPs>
</DL>
</Patch>
</Products>
</PatchInformation>
You can find the XML-Sample-Data file in the Installation folder in the Samples-Folder "XML".
Remarks
-
Limitations:
-
See also:
• ! Smart Package Robot 's XML-Features
• XML. - eXtended Markup Language
