MiniRobotLanguage (MRL)
BIT.32to16
Split 1 DWord into 2 Words
Intention
Split a 32-bit Variablöe in two 16-Bit Variables (High word and Low-Word).
The parameters P1 and P2 can be given as value or as "binary".
You can define for all 3 Parameters if they should be in "Value" or "Binary Format. For Details on these Parameter-Formats see
! Smart Package Robot 's BIT. - Operations

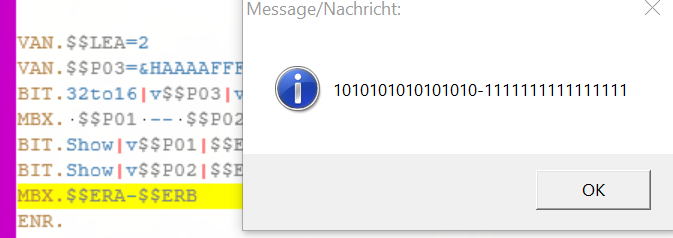

' Hee is a Sample-Script with Result:
VAN.$$LEA=2
VAN.$$P03=&HAAAAFFFF
BIT.32to16|v$$P03|v$$P01|v$$P02
MBX. $$P01 -- $$P02
BIT.Show|v$$P01|$$ERA|$$LEA
BIT.Show|v$$P02|$$ERB|$$LEA
MBX.$$ERA-$$ERB
ENR.
Syntax
BIT.32to16|[b/v]P1|[b/v]P2|[b/v]P3
Parameter Explanation
P1 - Variable containing a value or binary number that is to be splitted into 2 parts.
You can define this with a prefix of "v" for value and "b" for "binary" the format of the Parameter. If the prefix is omitted, "v" is the default setting for P1.
P2 - Variable that will contain the first Word of the result. Unless "b" is prefixed the default type for P2 is "value".
P3 - Variable that will contain the second Word of the result. Unless "b" is prefixed the default type for P2 is "value".
Example
'*****************************************************
' EXAMPLE 1
'*****************************************************
VAN.$$LEA=2
VAN.$$P03=&HAAAAFFFF
BIT.32to16|v$$P03|v$$P01|v$$P02
MBX. $$P01 -- $$P02
BIT.Show|v$$P01|$$ERA|$$LEA
BIT.Show|v$$P02|$$ERB|$$LEA
MBX.$$ERA-$$ERB
ENR.
Remarks
-
Limitations:
-
